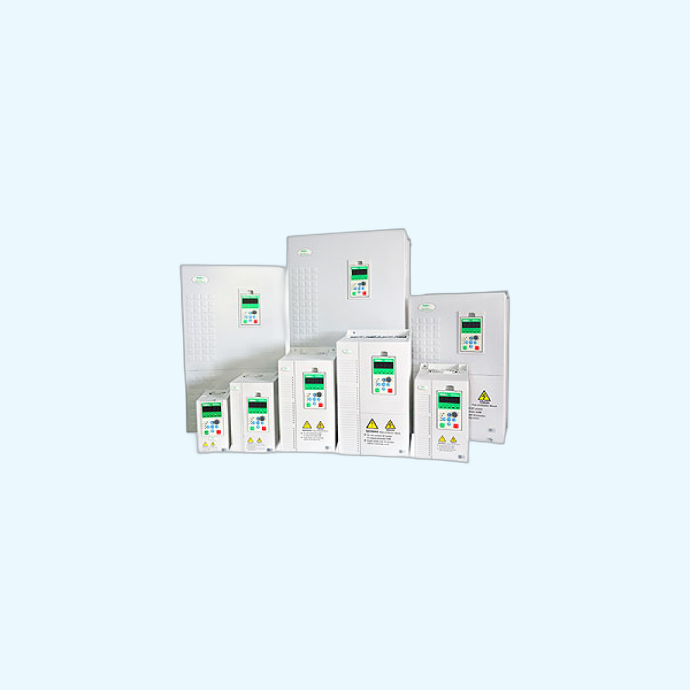

NE200 & NE300
0.4KW – 900KW
0 – 550Hz
NE Drive Highlights
✓ Simple, Reliable, Easy
✓ Outstanding control performance
✓ Superior Adaptability
✓ Optimize EMC design, immunity for high interference environment
✓ Compact design, based on thermal simulation & design to reduce product size
✓ Excellent Price/Performance Ratio
Specifications:
Input
| Rated power/ frequency | NE200-2Sxxxx: 1-phase 200V ~ 240V; 50Hz/60Hz NE200-4Txxxx: 3-phase 380V ~ 440V; 50Hz/60Hz |
| Voltage range | NE200-2Sxxxx: 176V ~ 264V; Voltage unbalance degree: < 3% ; permissible frequency fluctuation: ±5% NE200-4Txxxx: 304V ~ 456V; Voltage unbalance degree: < 3% ; permissible frequency fluctuation: ±5% |
Output
| Voltage range | NE200-2Sxxxx: 0~200V/440V; NE200-4Txxxx: 0~380V/440V |
| Overload capacity | Type G: 150% rated current 1min, 180% rated current 20s Type P: 120% rated current 1min, 150% rated current 1s |
Control features
| Control mode | Vector control with PG(VC) | Vector control without PG(SVC) | V/F control |
| Startup torque | —- | 0.5Hz 150% | 1.5Hz 150% |
| Speed adjustable range | —- | 1:100 | 1:50 |
| Speed stabilization precision | —- | ± 0.2% | ± 0.5% |
| Torque control | —- | Yes | N/A |
| Torque precision | —- | ± 10% | —- |
| Torque response time | —- | <20ms | —- |
Product functions
| Key functions | Torque/speed control mode switching, Multi-function input/ output terminals, under voltage regulation, AC operation grounding switching, torque limit, multi step operation, slip compensation, PID regulation, simple PLC, current control, manual/ automatic torque boost, current limit, AVR function |
| Frequency setup | Keypad, terminal Up/Down, Communication, Analog input AI1/AI2 |
| Output frequency | 0.00~550.0Hz |
| Startup frequency | 0.00~60.00Hz |
| Acc/Dec time | 0.01~3600.0s |
| Dynamic braking | 400V drive: braking unit action voltage: 650 ~ 750V; 200V drive: braking unit action voltage: 360 ~ 390V; |
| DC injection braking | DC braking activation frequency: 0.00 ~ 550.0Hz DC braking current: G type 0.0 ~ 100.0%; P type 0.0 ~ 80.0% DC braking time: 0.0 ~ 30.0s; Quick DC brake activation without lag time |
| Magnetic flux braking | Fast deceleration through adding motor magnetic flux |
Unique functions
| Parameter cloning | Parameter upload, download. User can forbid the overwriting of the uploaded parameters. |
Protection function
Power undervoltage/overvoltage protection, overcurrent protection, IGBT protection, heatsink overheat protection, drive overload protection, motor overload protection, External devices faults protection, output phase-to-phase short-circuit protection, Abnormal power failure in running, power supply trip, output phase loss, EEPROM trip, Analog input trip, communication trip, version compatibility trip, cloning trip, hardware overload protection
Environment
| Application environment | Vertical installation in well ventilated cabinet. Horizontal or other installation are forbidden. The cooling medium is air. Free from direct sunlight, dust, corrosive gas, combustible gas, oil mist, steam, and water drop. |
| Ambient temperature | -10~+40°C, deration is required from 40 to 50°C, rated output current decreasing 1% per 1°C temperature higher |
| Humidity | 5~95% without condensation |
| Altitude | 0~2000m, deration is required for more than 1000 meters, at rated output current decreasing 1% per 1 00m higher |
| Vibration | 3.5mm, 2~9Hz; 10 m/s2, 9~200Hz; 15 m/s2, 200~500Hz |
| Storage temperature | -40~+70°C |
Structure
| Protection level | IP20 |
| Cooling | Fan air cooling |
