FCPL

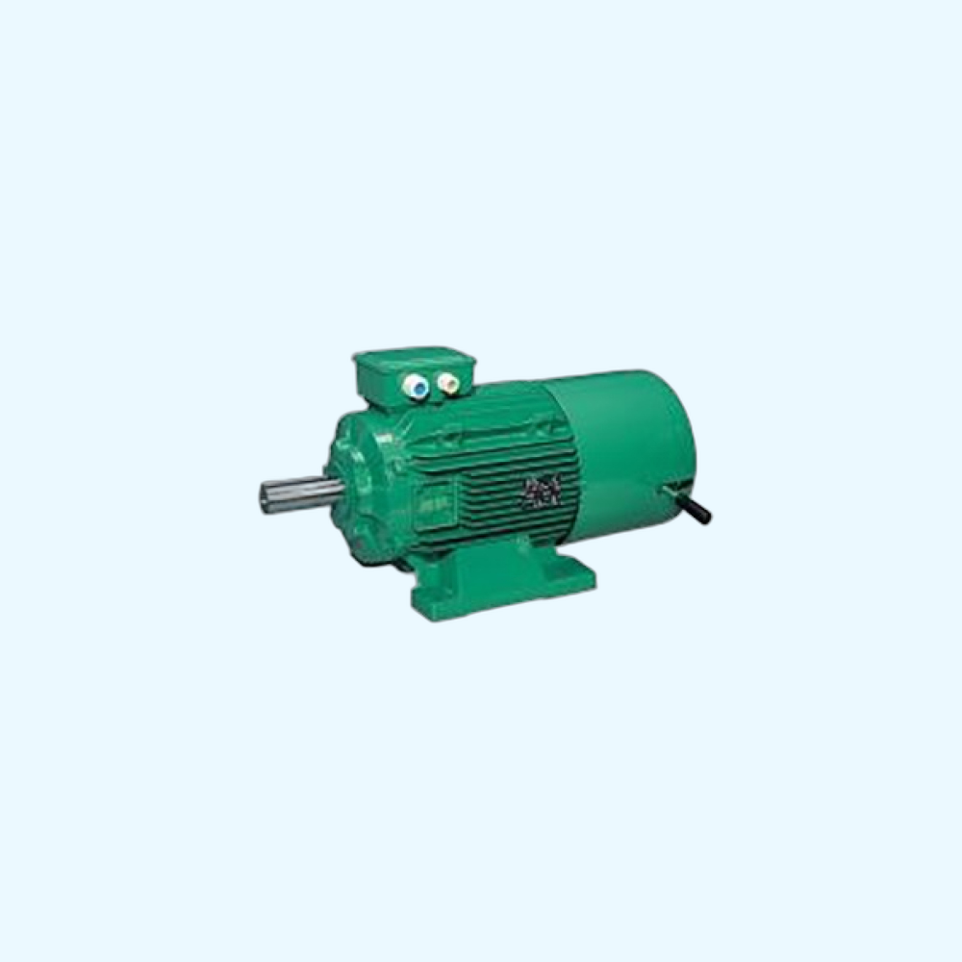

FCPL Lifting Patay DC brake
65 to 5000 Nm
Advantages
- Low noise level.
- Braking torque determined by the customer specification and totally reliable.
- Brake coil coated with resin.
- Available options: brake release by a lever, brake release indicator, lining wear indicator, second shaft end for crankshaft socket, adaptation of a tachogenerator, space heater.
Main Characteristics
| Size | 40 - 54 - 60 - 76 | |
|---|---|---|
| Motor type | LS - FLS - PLS - CPLS | |
| Ingress protection | IP | 44 - 55 - 56 |
| Voltage | V | 20 - 100 - 180 - 200 |
| Braking torque | N.m | 65 to 5000 |
| Technology | Power supply by half wave rectifier bridge or by doping device | |
| Duty | S1 or S3 |
