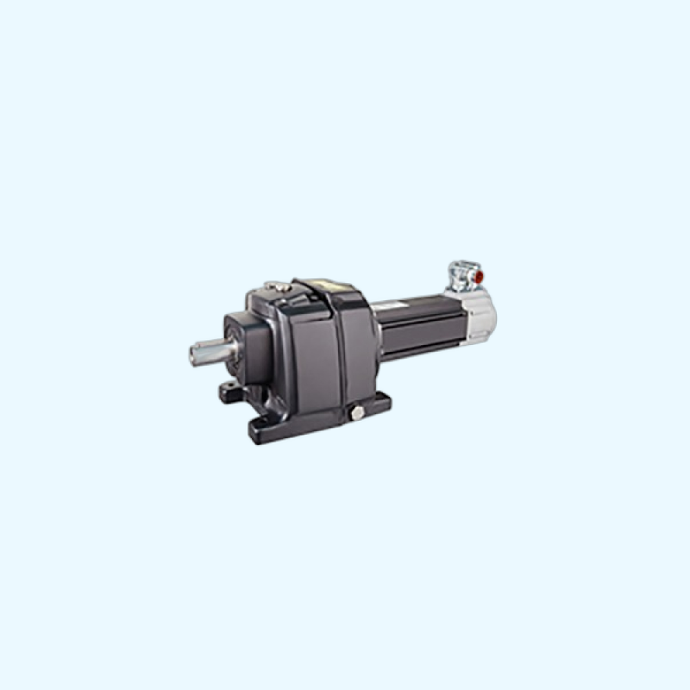

CB Dynabloc
Backlash from 8 to 22 arcmin
Ratios from 3 to 104
Cb Dynabloc is a range of high-efficiency geared servo motors for applications requiring standard backlash.
The inline helical gearboxes are compact and robust. They operate at 95% efficiency even at continuous duty torques of up to 1600 N.m. The motor assembly is integrated into the gearbox, resulting in a compact solution with increased stiffness.
Cb Dynabloc geared servo motors are fitted with Unimotor fm flexible servo motors making them ideal for demanding applications with high inertia loads where continuous torque is required.
Advantages
High efficiency (95%)
High continuous torque (S1 duty)
Compact size
Rugged design
Motor-integrated mounting for compactness and rigidity
Advantages
- High efficiency (95%)
- High continuous torque (S1 duty)
- Compact size
- Rugged design
- Motor-integrated mounting for compactness and rigidity
Main Characteristics
Rated torque | N.m | 16 to 1600 |
---|---|---|
Max acceleration torque | N.m | Up to 3500 |
Gearbox ratio | 3 to 104 | |
Backlash | arcmin | STANDARD: 8-22 |
Motor | Unimotor fm | |
Motor speed | rpm | 3000 |
Efficiency | % | 95 |
Output shaft | Solid shaft with key | |
Mounting | Foot or flange |
