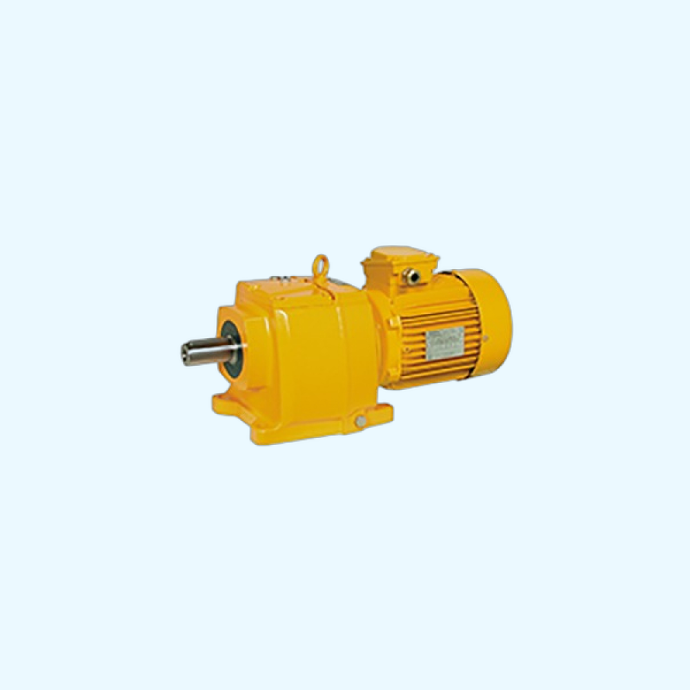

Compabloc -Zone 21
Geared motors with parallel gears – Potentially explosive dust atmospheres
Advantages
- Compact modular mounting
- Wide variety of mounting solutions
- Low-speed shaft and bearings large enough to withstand high radial loads
- Monobloc ribbed cast iron frame designed to ensure maximum shock and vibration resistance
Main Characteristics
| Ingress protection | IP | 65 |
|---|---|---|
| Output torque | N.m | 10 to 14,500 |
| Power | kW | 0.09 to 90 |
| Reduction ratio | 1.25 to 204 | |
| Safety | Certified INERIS no. 03 ATEX 0013 X (Ex II 2D T 125°C) |
