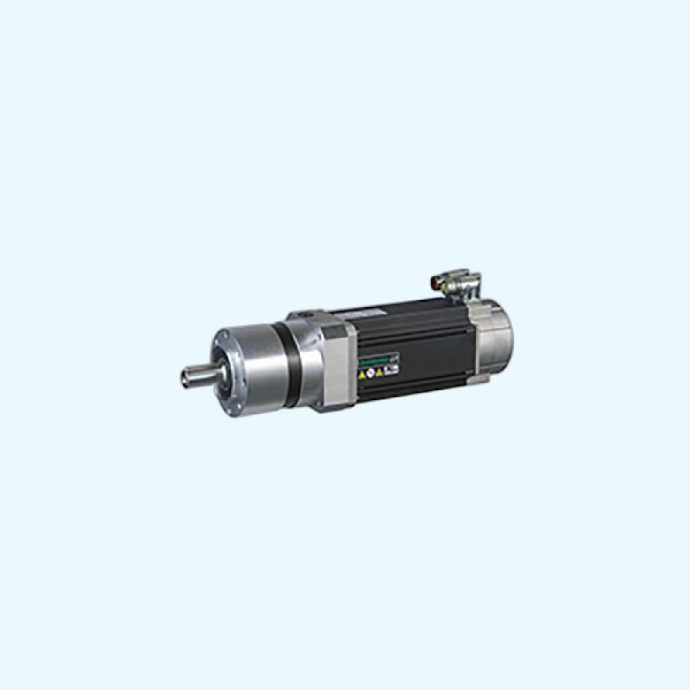

Pje Dynabloc
Backlash from 8 to 14 arcmin (Low backlash BASIC)
Ratios from 3 to 70 (one or two stages)
Pje Dynabloc is a range of economical geared servo motors for applications requiring reduced backlash.
The planetary gearbox provides low backlash and high torsional stiffness. This guarantees motor stability even at dynamic operation with high inertia loads. Lightweight and compact, the geared servo can be easily integrated into machines.
The Pje Dynabloc range can be fitted with Unimotor hd or fm servo motors depending on the required application:
Unimotor hd – designed for pulse duty applications requiring high dynamics
Unimotor fm – ideal for continuous duty applications with high inertia loads
Advantages
- Economical reduced backlash solution
- High torsional stiffness
- High inertia option available with fm motors
- Motor speeds up to 6000 rpm
- Lightweight and compact for easy integration into machines
- Maintenance free
- Lubricated for life
- Multipositional
Main Characteristics
| Rated torque | N.m | 20 to 340 |
|---|---|---|
| Max acceleration torque | N.m | Up to 460 |
| Gearbox ratio | 1-stage: 3 to 10 2-stage: 12 to 70 | |
| Backlash | arcmin | BASIC: 1 stage: 8 to 10 2 stage: 12 to 14 |
| Motor | Unimotor hd or Unimotor fm | |
| Motor Speed | rpm | 3000 or 6000 |
| Efficiency | % | 1 stage: 94 2 stage: 92 |
| Output shaft | Solid shaft with key | |
| Mounting | Flange with tapped holes (B14) |
