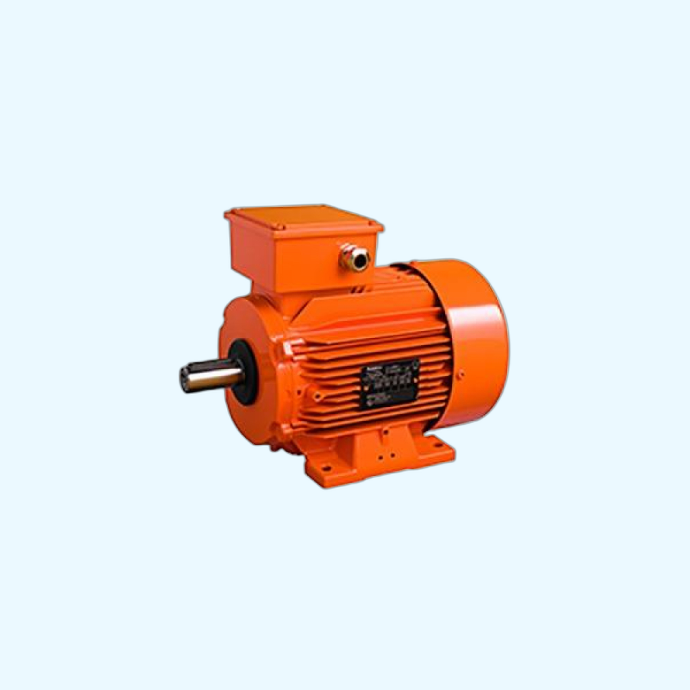

LSN ZONE 2
ATEX Gas – Aluminum frame – Non-sparking 0.75 to 200 kW
Advantages
- Non-sparking motor for use in zone 2 – Ex ec IIC T3
- Efficiency level in accordance with class IE2 or IE3
- IMfinity motor platform – Resistance and Reliability
- Double certification ATEX AND IECEx
- Use with variable speed possible
- Optional VIK finish
Main Characteristics
| Power supply frequency | Hz | 50 or 60 |
|---|---|---|
| Frame size | mm | 80 to 315 |
| Ingress protection | IP | 55 or 65 |
| Number of poles | 2, 4, 6 | |
| Power | kW | 0.75 to 200 |
| Safety | Motors conforming to European Directive ATEX 2014/34/UE | |
| Voltage | V | 400/415 V - 50Hz 460 V - 60Hz |
| Shaft type | steel |
