500 KW HIGH POWER DRIVE

315 kW to 500 kW | Up to 865 A | 380 to 480 VAC (± 10%)
with 110% Overload

You loved the smaller ones. Here’s the big one.
While low power accounts for most of the growth for variable speed drives, energy-saving applications are driving growth in high power drives.

Fans, pumps, compressors and extruders are common uses of drives that increasingly need a higher power option.

Light weight, but no light weight!

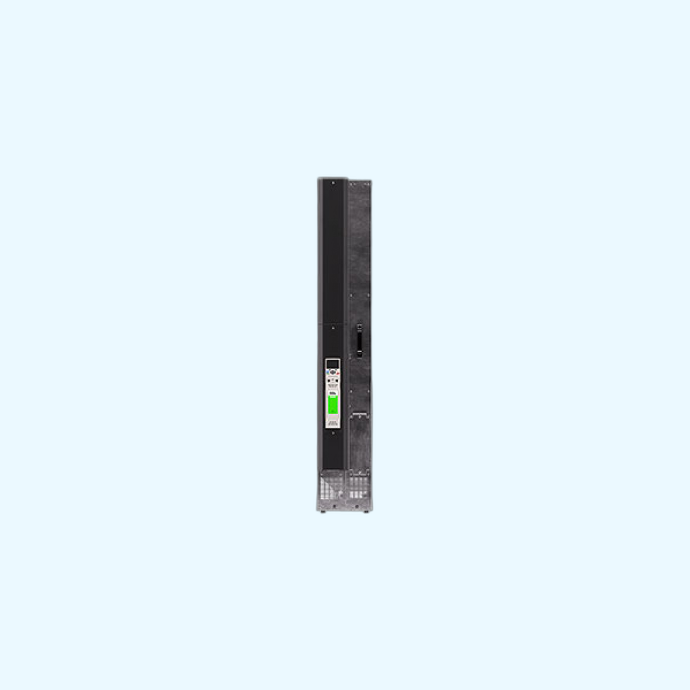

Enter the new high power drive, which not only offers 500 kW of power in a single module, but at 130kg is up to 60kg lighter than competitors drives.

Its small footprint and pre-engineered accessories make it easy to install or retrofit in industry standard cubicles.

A choice of control module options
This 500 kW drive can be fitted with a Unidrive M600/ M70X or Pump Drive F600 control module and has a wide range of accessories available for easy installation.

Alternatively, the frame can be provided pre-assembled in its own industry standard cabinet, with user-selectable system components included.

This is the ready to use DFS series free standing version.

Main Characteristics

Model	No Overload	Normal Duty	Heavy Duty
	Maximum continuous output current	Nominal power at 400 V	Maximum continuous output current	Peak current	Nominal power at 400 V	Maximum continuous output current	Peak current	Nominal power at 400 V
	A	kW	A	A	kW	A	A	kW
M000-12404800T	635	315	608	668	315	480	528	250
M000-12405660T	689	355	660	726	355	566	792	315
M000-12406600T	788	450	755	831	400	660	924	355
M000-12407200T	903	500	865	952	500	720	1008	400

Internal 125 kW brake chopper included as standard

Dimensions
Width 295 mm, Height 1750 mm, Depth 526 mm
