AFFINITY – HVAC AND REFRIGERATION DRIVES
1.1 kW – 132 kW (1.5 hp – 200 hp)
200 V / 400 V / 575 V / 690 V

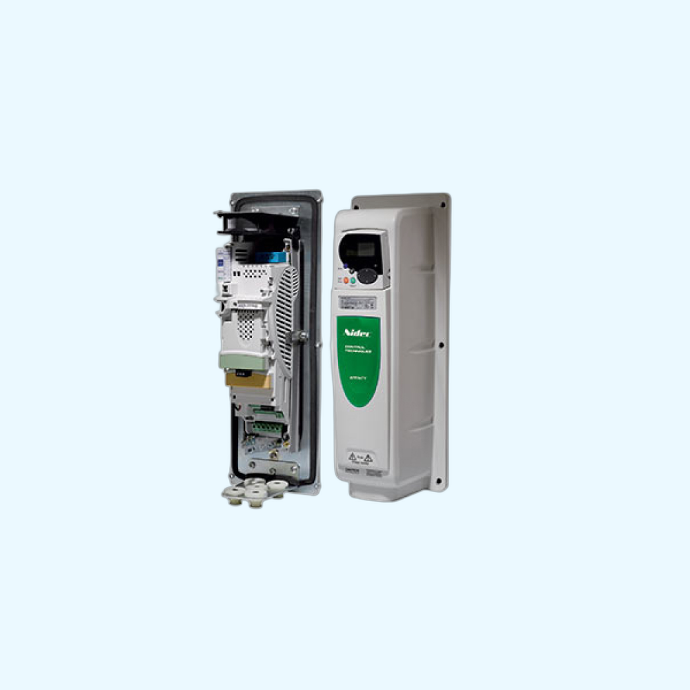

Affinity is Control Techniques’ dedicated AC Drive for HVAC and refrigeration systems, designed specifically to meet the needs of consultants, contractors and owners of modern commercial buildings. Affinity offers all of the drive functionality and accessories to simply and efficiently solve your fan, pump and compressor applications.
Affinity is available with IP21 (NEMA 1) and IP54 (NEMA 4) environmental protection.
Specification:
200 V Drive ratings (200 V to 240 V ± 10 %)
| MODEL | MAXIMUM CONTINUOUS OUTPUT CURRENT | NOMINAL POWER AT 220 V | MOTOR POWER AT 230 V | PEAK CURRENT |
| A | kW | hp | A | |
| 1201 | 5.2 | 1.1 | 1.5 | 5.7 |
| 1202 | 6.8 | 1.5 | 2.0 | 7.4 |
| 1203 | 9.6 | 2.2 | 3.0 | 10.5 |
| 1204 | 11 | 3.0 | 3.0 | 12.1 |
| 2201 | 15.5 | 4.0 | 5.0 | 17.0 |
| 2202 | 22 | 5.5 | 7.5 | 24.2 |
| 2203 | 28 | 7.5 | 10 | 30.8 |
| 3201 | 42 | 11 | 15 | 46 |
| 3202 | 54 | 15 | 20 | 59 |
| 4201 | 68 | 18.5 | 25 | 74 |
| 4202 | 80 | 22 | 30 | 88 |
| 4203 | 104 | 30 | 40 | 114 |
| 5201 | 130 | 37 | 50 | 143 |
| 5202 | 154 | 45 | 60 | 169 |
For size 1 to 6 standard drives, size 1 to 3 E12/54 drives, and size 1 to 3 E12/E66 drives, the continuous current ratings given are for maximum 40 °C (104 °F),1000 m altitude and 3.0 kHz switching. For size 4 to 6 E12/54 drives, the continuous current ratings given are for maximum 35 °C (95 °F),1000 m altitude and 3.0 kHz switching.
400 V Drive ratings (380 V to 480 V ± 10 %)
| MODEL | MAXIMUM CONTINUOUS OUTPUT CURRENT | NOMINAL POWER AT 400 V | MOTOR POWER AT 460 V | PEAK CURRENT |
| A | kW | hp | A | |
| 1401 | 2.8 | 1.1 | 1.5 | 3.0 |
| 1402 | 3.8 | 1.5 | 2.0 | 4.1 |
| 1403 | 5.0 | 2.2 | 3.0 | 5.5 |
| 1404 | 6.9 | 3.0 | 5.0 | 7.5 |
| 1405 | 8.8 | 4.0 | 5.0 | 9.6 |
| 1406 | 11 | 5.5 | 7.5 | 12.1 |
| 2401 | 15.3 | 7.5 | 10 | 16.8 |
| 2402 | 21 | 11 | 15 | 23 |
| 2403 | 29 | 15 | 20 | 31 |
| 3401 | 35 | 18.5 | 25 | 38 |
| 3402 | 43 | 22 | 30 | 47 |
| 3403 | 56 | 30 | 40 | 61 |
| 4401 | 68 | 37 | 50 | 74 |
| 4402 | 83 | 45 | 60 | 91 |
| 4403 | 104 | 55 | 75 | 114 |
| 5401 | 138 | 75 | 100 | 151 |
| 5402 | 168 | 90 | 125 | 184 |
| 6401 | 205 | 110 | 150 | 225 |
| 6402 | 236 | 132 | 200 | 259 |
575 V Drive ratings (500 V to 575 V ± 10 %)
| MODEL | MAXIMUM CONTINUOUS OUTPUT CURRENT | NOMINAL POWER AT 575 V | MOTOR POWER AT 575 V | PEAK CURRENT |
| A | kW | hp | A | |
| 3501 | 5.4 | 3.0 | 3.0 | 5.9 |
| 3502 | 6.1 | 4.0 | 5.0 | 6.7 |
| 3503 | 8.4 | 5.5 | 7.5 | 9.2 |
| 3504 | 11 | 7.5 | 10 | 12.1 |
| 3505 | 16 | 11 | 15 | 17.6 |
| 3506 | 22 | 15 | 20 | 24.2 |
| 3507 | 27 | 18.5 | 25 | 29.7 |
| 4603 | 36 | 22 | 30 | 39.6 |
| 4604 | 43 | 30 | 40 | 47.3 |
| 4605 | 52 | 37 | 50 | 57.2 |
| 4606 | 62 | 45 | 60 | 68 |
| 5601 | 84 | 55 | 75 | 92 |
| 5602 | 99 | 75 | 100 | 108 |
| 6601 | 125 | 90 | 125 | 137 |
| 6602 | 144 | 110 | 150 | 158 |
690 V Drive ratings (500 V to 690 V ± 10 %)
| MODEL | MAXIMUM CONTINUOUS OUTPUT CURRENT | NOMINALPOWER AT 690 V | MOTOR POWER AT 690 V | PEAK CURRENT |
| A | kW | hp | A | |
| 4601 | 22 | 18.5 | 25 | 24.2 |
| 4602 | 27 | 22 | 30 | 29.7 |
| 4603 | 36 | 30 | 40 | 39.6 |
| 4604 | 43 | 37 | 50 | 47.3 |
| 4605 | 52 | 45 | 60 | 57.2 |
| 4606 | 62 | 55 | 75 | 68.2 |
| 5601 | 84 | 75 | 100 | 92 |
| 5602 | 99 | 90 | 125 | 108 |
| 6601 | 125 | 110 | 150 | 137 |
| 6602 | 144 | 132 | 175 | 158 |
| FUNCTION | QTY | I/O DEFAULT FUNCTION | RATING |
| Analog input 1 | 1 | Frequency /speed ref 1 | ± 10 V |
| Analog input 2 | 1 | Frequency /speed ref 2 | ± 10 V(default), 0-20 mA or 4-20 mA |
| Analog input 3 | 1 | Motor thermistor | ± 10 V, 0-20 mA, 4-20 mA or Motor thermistor input (default) |
| Analog output | 2 | Speed/frequency Torque (active current) | ± 10 V(default), 0-20 mA or 4-20 mA |
| Digital input | 3 | Fire mode activate input Analog input 1/2 select Unassigned input | +24 V |
| Digital input / output | 3 | At zero speed output Reset input Run forward input | 200 mA ± 30 V ± 30 V |
| Relay | 1 | Drive OK indicator | Normally open |
| Drive enable | 1 | Drive enable | +24 V |
| +24 V External input | 1 | External 24 V supply | +24 V |
- IP54 (NEMA 12) and UL Type 12 module, or
- IP20 (NEMA 1) module and, with optional conduit box fitted, UL Type 1 module
- IP20 (NEMA 1) module meets IP54 when through panel mounted
- Humidity 95 % maximum (non condensing) at 40 °C
- Altitude: 0 to 3000 m, derate 1 % per 100m between 1000 m and 3000 m
- Vibration: Tested in accordance with IEC 60068-2-64
- Mechanical shock tested in accordance with IEC 60068-2-29
- Storage temperature -40 °C to 50 °C
- Electromagnetic immunity complies with EN 61800-3 and EN 61000-6-2
- With onboard EMC filter, complies with EN 61800-3 (2nd environment)
- EN 61000-6-3 and EN 61000-6-4 with optional footprint EMC filter
- IEC 61000-3-4 Supply conditions
- IEC 60146-1-1 Supply conditions
- IEC 61800-5-1 (Power Drive Systems)
- IEC 61131-2 I/O
- EN 60529 Ingress protection
- EN 50178 / IEC 62103 Electrical safety
- UL508C, UL840
- EN 61000-6-2, EN 61000-6-4 EMC
Dimensions, weights and ratings
| FRAME SIZE | WEIGHT | |||||
| POWER RATING | MODEL | IP20 (NEMA 1) drive | IP54 (NEMA 12) drive | |||
| KW | kg | lb | kg | lb | ||
| 1 | £5.5 | BA1201 to BA1204, BA1401 to BA1404 | 5 | 11 | 9 | 20 |
| BA1405 and BA1406 | 5.8 | 12.8 | ||||
| 2 | £15 | All | 7 | 15.4 | 12 | 26.5 |
| 3 | £30 | All | 15 | 33.1 | 25 | 55 |
| 4 | £55 | All | 30 | 66.1 | 40 | 88 |
| 5 | £90 | All | 55 | 121.3 | 70 | 154 |
| 6 | £132 | All | 75 | 165.3 | 90 | 198 |
| FRAME SIZE | DIMENSION | |||||
| IP20 (NEMA 1) DRIVE | IP54 (NEMA 12) DRIVE | |||||
| H | W | D | H | W | D | |
| 1 | 386 mm (15.20 in) | 100 mm (3.94 in) | 219 mm (8.62 in) | 560 mm (22.05 in) | 184 mm (7.24 in) | 264 mm (10.39 in) |
| 2 | 389 mm (15.32 in) | 155 mm (6.10 in) | 552 mm (21.73 in) | 236 mm (9.29 in) | 262 mm (10.32 in) | |
| 3 | 250 mm (9.84 in) | 260 mm (10.2 4in) | 544 mm (21.42 in) | 331 mm (13.03 in) | 302 mm (11.89 in) | |
| 4 | 547mm (21.54 in) | 310 mm (12.21 in) | 298 mm (11.73 in) | 703m m (27.68 in) | 386 mm (15.20 in) | 346 mm (13.62 in) |
| 5 | 858 mm (33.78 in) | 1211 mm (47.68 in) | 416 mm (16.38 in) | 347mm (13.66 in) | ||
| 6 | 1169 mm (46.02 in) | 1522 mm (59.92 in) | 416 mm (16.38 in) | 348 mm (13.70 in) |
Advantages
A complete HVAC solution
Affinity includes all of the features you would expect from a dedicated HVAC drive, plus more:
- Fireman’s Mode for building occupant safety
- Integrated DC Link Reactors and EMC filters
- Free software tools for:
- Energy saving calculations
- Harmonic analysis
- Commissioning and monitoring
- Onboard controller and real-time clock,
- Enables increased control system redundancy for critical equipment
- Reduces costs for OEMs
- Simplicity in small HVAC systems where a full Building Management System is not required
- Motor pre-heat for preventing condensation forming
- High Switching frequency to 16kHz for quiet motor operation
- Two PID loops (e.g. temperature or pressure control)
- Sleep / wake mode
- SmartCard data storage for back-up and copying of drive configuration
- Pluggable terminals for simple installation and maintenance
- Low load detection to sense mechanical problems such as a broken drive belt
- Easy connectivity: BACnet , Metasys N2, Modbus, Lonworks*, Ethernet*, DeviceNet*, PROFIBUS*, Additional I/O*
*These features are provided by click-in option modules, two may be fitted within each drive.
